Exmatter malware levels up: S-RM observes new variant with simultaneous remote code execution and data targeting

Special edition
Abstract digital code numbers in wire grid background

S-RM’s incident response team has observed a new variant of the data exfiltration tool, Exmatter, being used by a LockBit affiliate on a recent ransomware engagement.

In this special edition of the Cyber Intelligence Briefing, S-RM cyber experts, David Broome and Gavin Hull, explore the technical details underpinning this development, what it means for potential victims, and how organisations can identify and mitigate similar malware in their environments.

What is Exmatter?

Exmatter is a custom-built data exfiltration tool which aims to automate and increase the efficiency of data exfiltration from victims’ systems by targeting specific directories and file types for collection and exfiltration. The tool’s creation and use has been attributed to a ransomware affiliate tracked by Microsoft as Velvet Tempest (previously tracked as DEV-0504), which has deployed the following ransomware payloads between December 2021 and June 2022: Ryuk, Revil, LockBit 2.0, BlackMatter, Conti and BlackCat aka AlphV. S-RM has observed this affiliate deploying LockBit 3.0 payloads since August 2023..

A new variant?

In a recent engagement, S-RM identified a LockBit affiliate using a new variant of Exmatter malware to exfiltrate sensitive data from the client’s network prior to the deployment of ransomware. The Exmatter binary was discovered using the file names ‘SMSAgent.exe’, ‘<company_name>.exe’ and ‘<company_domain_name>.exe’ (company name redacted), with the SHA1 hash 7c67976bfc3ef3c673d5cabc60b7f6fbe0ab19dc. Analysis of the Exmatter binary revealed that, beneath multiple layers of obfuscation, including the use of Spanish to write its functions, and encoding large sections of the malware in Base64, were features we have not previously observed.

The two most significant developments we detected in Exmatter’s code were its ability to read mapped network drives from the registry of the host system, and its facilitation of inter-process communication (‘IPC’) between multiple binary processes across multiple systems through the use of an open-source module named TinyIPC.

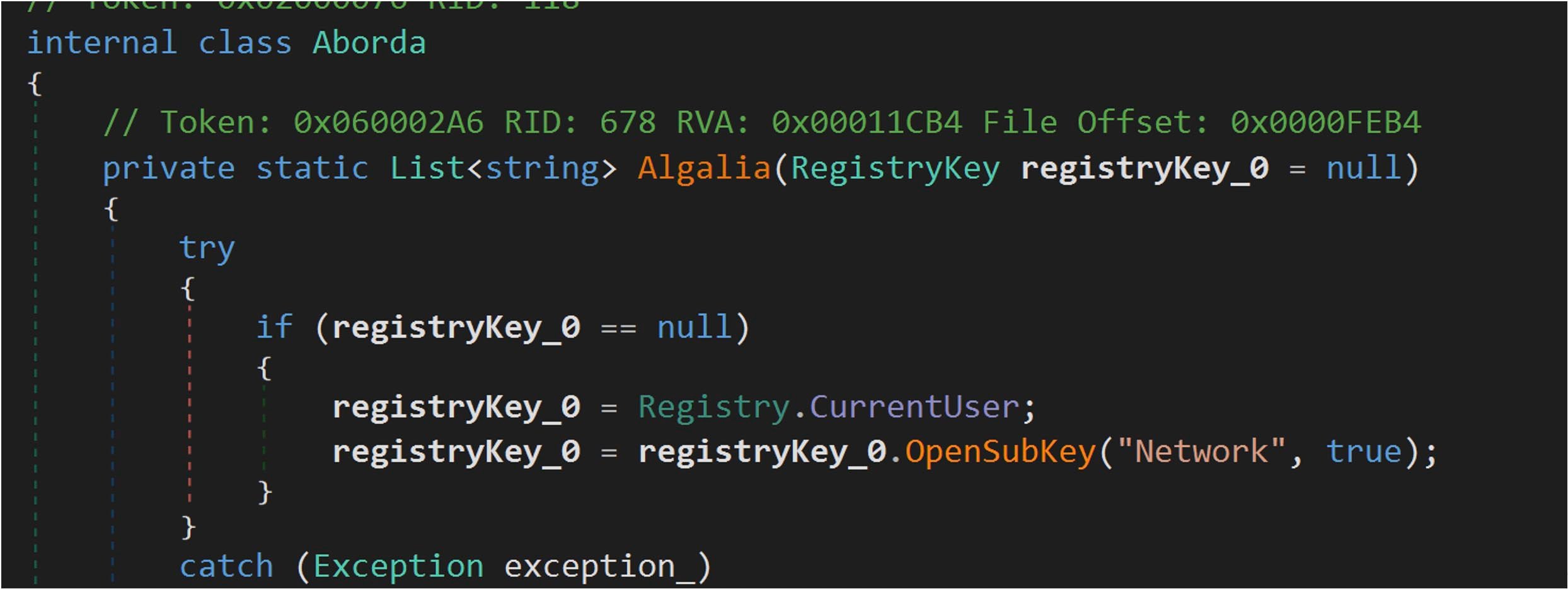

S-RM - Exmatter - Figure 1Figure 1 – Querying of the Network registry key HKEY_CURRENT_USER\Network\*\RemotePath, which stores the UNC paths of mounted shares.

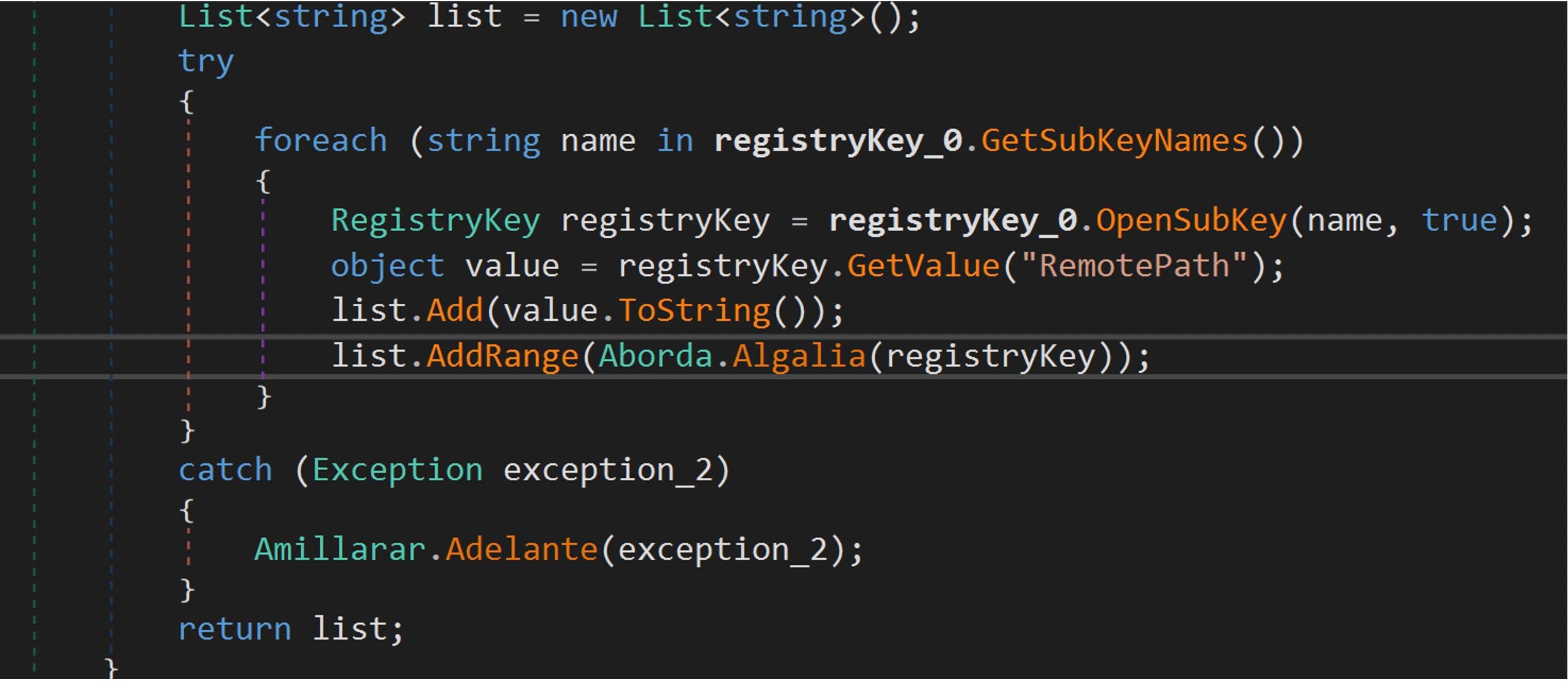

S-RM - Exmatter - Figure 2Figure 2 – Storing the RemotePath registry values as a list of UNC paths of mounted shares.

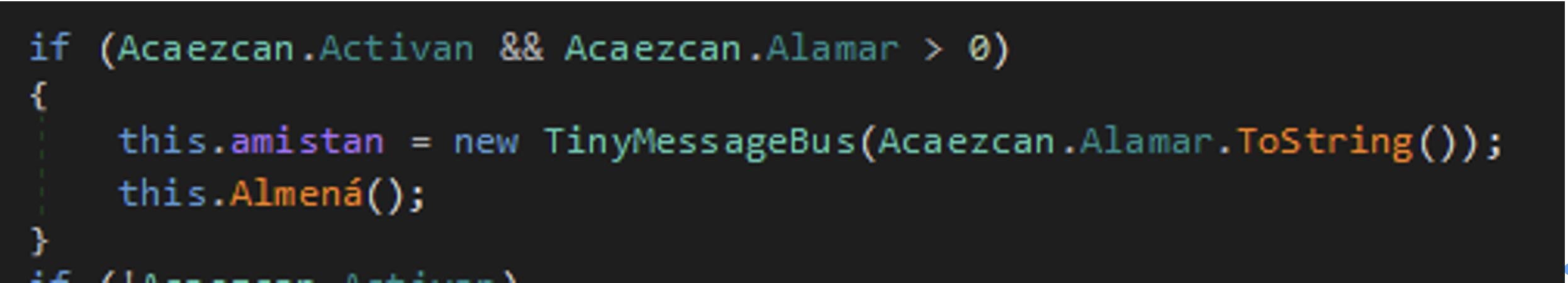

S-RM - Exmatter - Figure 3Figure 3 – Instantiation of the TinyMessageBus class for IPC communication.

The use of IPC allowed it to move laterally between network shares on the victim’s network, simultaneously targeting data for exfiltration whilst remotely executing itself on other systems. If executed with administrator rights, it was also able to modify the permissions of files using the command ‘takeown’, which uses the SeTakeOwnershipPrivilege Microsoft API, giving the threat actor ownership permissions over files they were previously denied access to. This not only sped up the process of exfiltration, but also gave Exmatter more autonomy to target a larger number of systems and data with minimal input from the threat actor.

The binary also contained a Base64 encoded WebDAV client configured to a WebDAV server controlled by the threat actor, which was used for command and control. Exmatter then used the HTTP PUT method over port 80 to transfer data from the victim’s network, ultimately resulting in the exfiltration of up to 1TB of data.

Towards automation and autonomy

Our analysis of Exmatter demonstrates that threat actors are becoming increasingly sophisticated in their ability to exfiltrate large amounts of data from victim networks whilst remaining undetected. The new functions highlight a growing trend towards automation and autonomy, with malware authors continuously finetuning their source code to reduce the time needed to achieve their objectives and minimise the need for human input.


In response to this increasing sophistication, organisations need to be proficient at detecting and preventing the use of data exfiltration tools in their environment. Sensitive data is a primary target for cyber criminals who seek to use it as leverage over their victims. Below, we have outlined five recommendations for identifying and mitigating these threats in your environment.

  1. Block inbound SMB connections to endpoints via Group Policy Object (GPO). As Exmatter utilises IPC to perform lateral movement and remote execution, blocking inbound SMB connections on endpoints can limit its ability to function. On Windows devices, this can be achieved by disabling the following settings on endpoints using Microsoft Defender firewall: File and Printer Sharing (SMB-In), Netlogon Service (NP-In), Remote Event Log Management (NP-In), and Remote Service Management (NP-In).
  2. Disable Windows administrative shares. Exmatter abuses Windows administrative shares to perform lateral movement, a type of share enabled by default in Windows environments to facilitate the remote management of hosts by administrators and software. Organisations should consider if administrative shares are needed in their environment, and if not, consider disabling them. These can be disabled via GPO or by changing the following registry subkeys to the value 0:
    Disabling administrative shares on servers:
    DWORD Name = AutoShareServer
    Value = 0
    Disabling administrative shares on endpoints:
    DWORD Name = AutoShareWks
    Value = 0
  3. Use an intrusion detection system (IDS). Exmatter exfiltrates data via the HTTP PUT method, making it difficult for the victim to detect it leaving their network. This is a common issue for many organisations, with large amounts of HTTP traffic allowing threat actors to disguise their data exfiltration and remain undetected. Whilst identifying data exfiltration can be difficult, organisations can utilise intrusion detection systems (IDS) to monitor their network traffic and detect anomalous behaviour, alerting IT staff to any irregularities in the flow of data.
  4. Limit the use of web browser-based password managers. Exmatter targets .sqlite files that are commonly used by web browsers to store sensitive information such as usernames and passwords. Theft of these files from your environment could lead to a much larger and more protracted compromise of your user accounts and data. Consider limiting the use of web browser-based password managers for your organisation’s users to prevent the theft of credentials.
  5. Conduct tactical threat hunting. Understanding normal processes and behaviour in an environment is essential to identifying anomalies that are associated with malicious activity. Process, file integrity, and command monitoring can give defenders enhanced visibility into their network to detect deviations from baseline activities. These can then be combined with SIGMA rules to conduct threat hunting exercises to identify activity associated with lateral movement and data exfiltration.

Technical details


Indicator name 


Malware family


Action on objectives

Collect and exfiltrate sensitive data

Delivery mechanism

Deployed via GPO, remote execution over network shares

Attack chain stage

Exfiltration prior to ransomware deployment

Target operating system


Code language


Type of file


File name

SMSAgent.exe , <company_name.exe>, <company_domain_name.exe>

File path


File size









12288:EDeBtyNAO1cgp9a7UT11H111TPro2KDzG/zUOrOeMrOFSW2PD2dUWF883n 9aMpH7:ED0yNAO1cgp+UT11H111TPro2KDzG/zR




No signature found

Compile time

2024-01-18 01:37:26


Not present

Directories ignored by Exmatter

  1. \System Volume Information
  2. C:\Users\All Users\Microsoft
  3. C:\ProgramData
  4. C:\Windows
  5. C:\$Recycle.Bin
  6. C:\Documents and Settings
  7. C:\PerfLogs
  8. AppData\Roaming\Microsoft
  9. AppData\Local\Microsoft
  10. AppData\Local\Packages
  11. C:\Program Files
  12. C:\Program Files (x86)
  13. Application Data

File types targeted by Exmatter

  1. .pdf
  2. .doc
  3. .docx
  4. .docm
  5. .xls
  6. .xlsx
  7. .xlsm
  8. .ppt
  9. .pptx
  10. .pptm
  11. .xps
  12. .accdb
  13. .png
  14. .jpg
  15. .jpeg
  16. .bmp
  17. .rdp
  18. .sql
  19. .sqlite
  20. .db
  21. .json
  22. .msg
  23. .pst
  24. .zip
  25. .rtf
  26. .ipt
  27. .dwg
  28. .txt

Exmatter arguments

Argument Function
ipc  Initiates a TinyIPC connection in slave mode, with the specified IPC node number. This number needs to be greater than 1 as its value. For example, -ipc 373737.
ipcpref Sets the IPC number to start from. If not selected, a random number is chosen between 100,000 and 999,999.
path Sets a specific path to target, such as the UNC path
norewrite Disables ‘Breaker mode’
w Default argument, runs expected behaviour of the malware

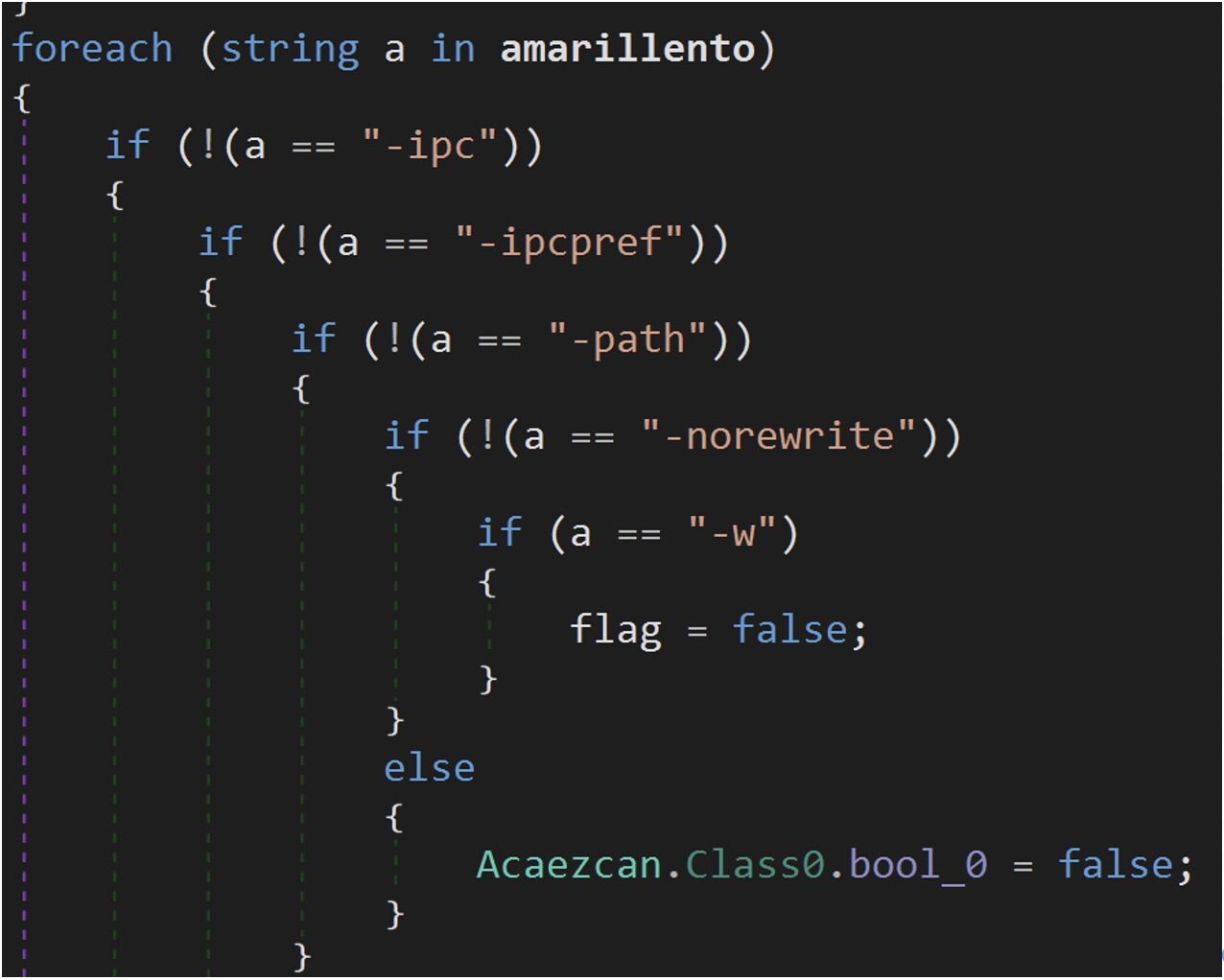

S-RM - Exmatter - Figure 4Figure 4 – Argument parser using cascaded conditional IF ELSE clause.
